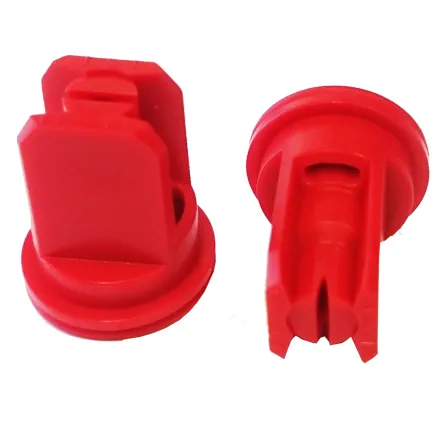

The Red Air Suction Low Drift Nozzles are compact high performance nozzles that are recommended to be used for boom spraying during sub optimal weather conditions. The Nozzles reduce drift by creating large droplets infused with air bubbles, these larger droplets are not easily blown by winds. Because the the larger droplets are created using air instead of extra liquid no pesticide is being wasted. The Red Air Suction Low Drift Nozzle have a spraying angle of 110°, are durable and are colour coded in compliance with ISO10625.
| Droplet Size | Bar | Capacity L/Min | Speed (km/h) | |||||||
| 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |||
| Litres Per Hectare | ||||||||||
| V. Coarse | 2 | 1.31 | 262 | 197 | 157 | 131 | 112 | 98 | 87 | 78 |
| Coarse | 3 | 1.6 | 320 | 240 | 192 | 160 | 137 | 120 | 107 | 96 |
| Coarse | 4 | 1.85 | 370 | 278 | 222 | 185 | 159 | 139 | 123 | 111 |
| Coarse | 5 | 2.07 | 414 | 311 | 248 | 207 | 177 | 155 | 138 | 124 |
| Coarse | 6 | 2.26 | 453 | 339 | 272 | 226 | 194 | 170 | 151 | 136 |
